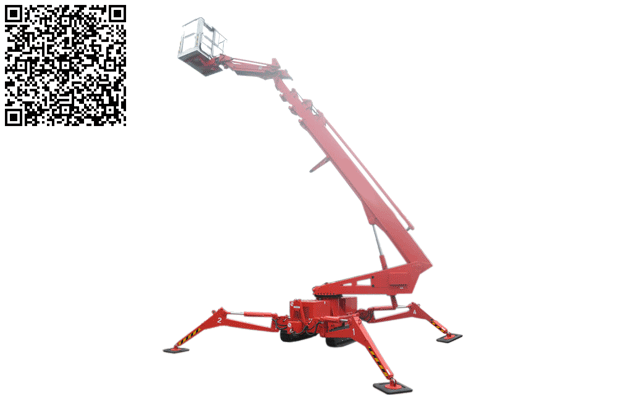

Terrainlift Spider Crawler Mounted Boom Lift SL23:
1. Self-propelled, easy to operate, including hydraulic outrigger, stable and safe.
2. Widely used for high altitude working, like building clearing, maintenance etc..
3. Diesel motor or electric engine is optional, workable both inside and outside.
4. Load capacity: 200kg
5. Max. working height: 23m.
| Model | SL23 | |
| Max. working height | m | 23 |
| Max. platform height | m | 21 |
| Loading capacity | kg | 200 |
| Lateral Outreach | m | 10 |
| Platform rotation | 180° | |
| Jib rotation | 120° | |
| Turntable rotation | 360° non- continuous | |
| Platform size | m | 1.2×0.8×1.1 |
| Overall stowed length | m | 6.80 |
| Overall stowed width | m | 1.50 |
| Overall stowed height | 2.10 | |
| Standard power source | diesel engine/220V AC power | |
| Driving speed | km/h | 0-1.7 |
| Max climbing ability | 30° | |
| Total weight | kg | 3300 |
