Overview Specifications

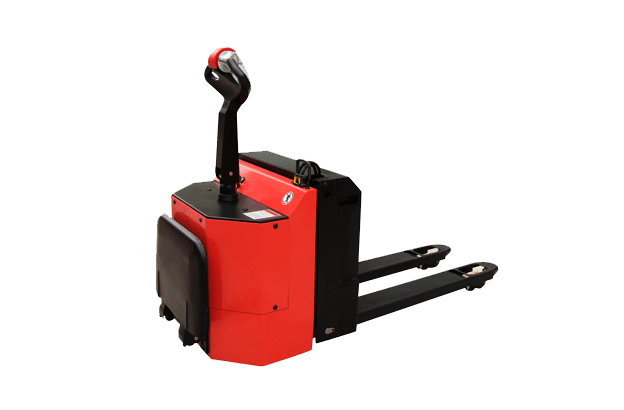

Model   TRE18 TRE20
Power   Electric
Driving mode   Pedestrian
Rated loading capacity kg 1800 2000
Load centre distance mm 600
Front overhang distance mm 963/1033
Track width mm 1275/1335
Weight(include accumulator) kg 450
Wheel material   polyurethane
Tyre size, drive side mm Φ252x89
Tyre size, load side mm Φ80x70
Dimension of steering wheel   Φ100x40
Wheel numbers   1x+2/2/1x+2/4
Wheel track (front)Drive side mm 530
Wheel track (back)load side mm 380/525
Lift height mm 120
Height of lever in middle position mm 1240 1050
Lowered fork height mm 82
Overall length mm 1785/1855
Length of truck body mm 635
Width of truck body mm 726
Fork dimension s/e/l mm 60/160/1150(1220)
Lateral distance of fork mm 540/685
Ground clearance mm 22
Aisle width, pallet 800X1200 mm 2295/2335
Turning radiusWa mm 1630/1700
Driving speedfull load/ no load km/h 5.0/5.2
Lifting speedfull load/ no load mm/s 22/30
Lowering speed full load/ no load mm/s 30/23 31/23
Climbing capacity full load/no load % 8/16
Parking brake 　 Electromagnetic brake
Drive motor power kw kW 1.5 1.5
Lift motor power kw kW 0.8 0.8
Accumulator(discharge rate5 hours) V/Ah 24/165 24/165
Accumulator weight(+/-5%) kg 160 160
Battery dimension, LxWxH mm 455/196/570 455/196/570
Driving and control methods 　 FET control FET control
Noise heard by the driver dB(A) <70 <70
Turning angle ° 180 180
